Our the services

Adopting the flexible cooperation mode of OEM/ODM/CKD/SKD/PCBA.




Photovoltaic House Battery On&Off-Grid Integrated Solution Provider
Grid PV Microinverter | Grid Hybrid Inverter | Modular Hybrid Inverter | Smart Li-Battery Module | Bidirectional Power Module


Solar PV House Battery system solution


Applicable products: Hybrid microinverter

Input voltage: 48V/PV10V-60V

Output power: 1600w (grid-connected power adjustable 0~1600w)

Output voltage (output current): 230Vac (6.5A)

Photovoltaic input open circuit voltage/current: 60V/15A*2

IP rating: IP65

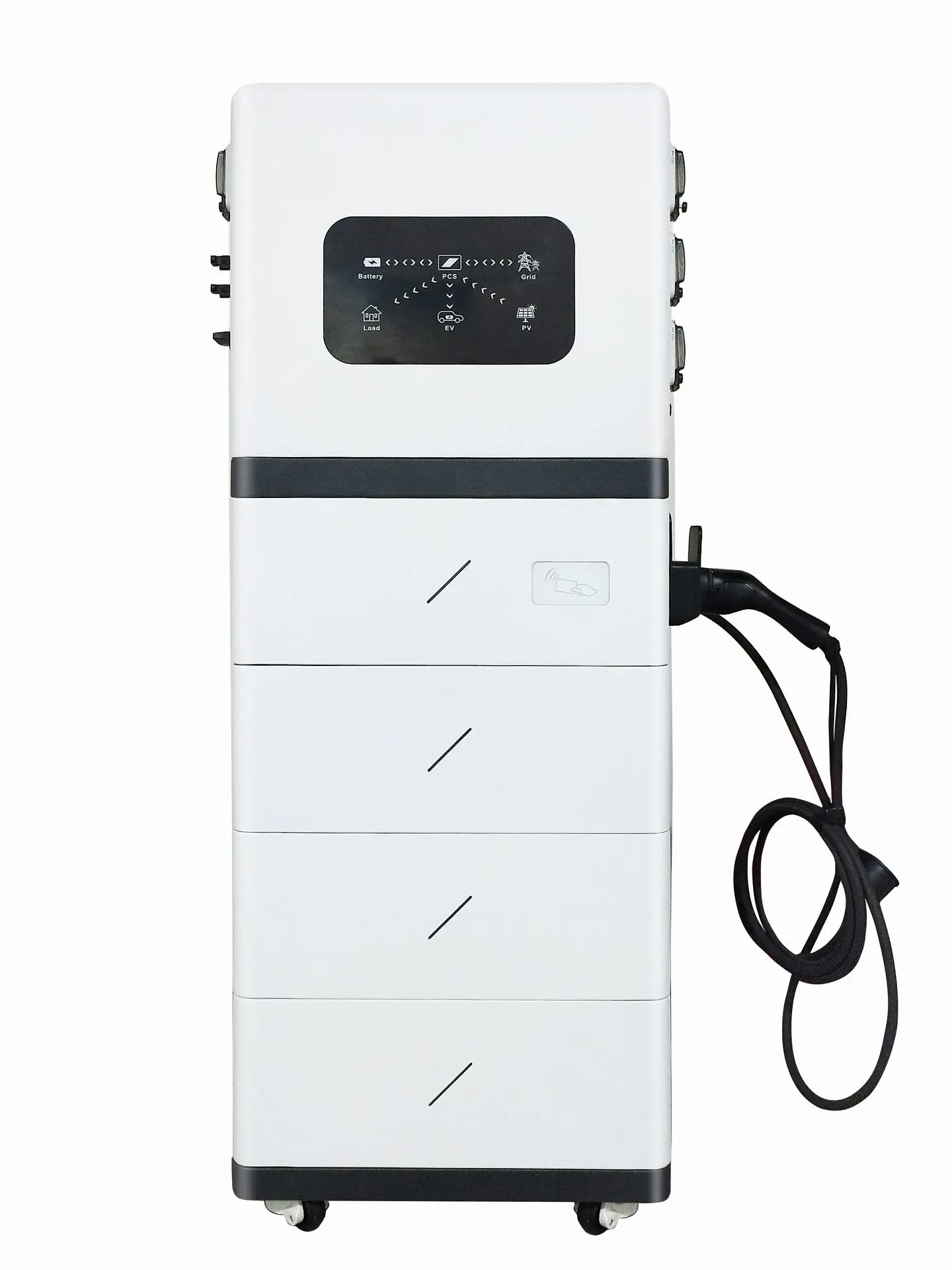

Energy storage and outdoor power all-in-one machine

Applicable products: Buit-in Hybrid microinverter

Technical specifications reference:

Input voltage: 48V/PV10V-60V

Output power: 1600W/2400W/3600W/5600W (grid-connected power adjustable 0~3600w)

Output voltage (output current): Single phase 230Vac (6.5A/10.5A/15.7A)

Photovoltaic input open circuit voltage/current:

60V/20A*2 | 100V20A | 100V25A

IP rating: IP20,IP54









Household energy storage system

(single-phase/split-phase/three-phase) solution


Applicable products: Off-grid hybrid energy storage inverter

Grid standard:

1.American/Japanese single-phase

Battery voltage:24V(48V)

Output Power:3.6KW/5KW

The output voltage 120Vac

Photovoltaic input open circuit voltage/current: 13A/100V-500V /16A/500V

IP rating:IP20


2.European single-phase

Battery voltage:24V/48V

Output Power:3.6KW/5.6KW/8KW

The output voltage 230Vac

Photovoltaic input open circuit voltage/current: 13A/100V-500V /16A/500V

IP rating:IP20


3.US standard split phase: 120Vac/240Vac(8KW~12KW)

Battery voltage:48V/100V-500V

Photovoltaic input open circuit voltage/current: 16A*2/500V

IP rating:IP20/IP65

Portable mobile energy storage solution


Applicable products: Portable two-way hybrid inverter board


Technical specifications reference:

Battery voltage:48V

Input voltage: 48V/PV10V-60V

Output power: 2400W/3600W (grid-connected power adjustable 0~3600w)

Charging power:1500W/2000W

Output voltage (output current): 230Vac 50Hz(10A/15.7A)/ 120Vac60Hz(20A/30A)

PV input open circuit voltage:150V

Current/MPPT power:25A/1500W

IP rating: IP20

EMC level:CLASSB



Buit-in Hybrid microinverter

Portable two-way hybrid inverter board(PCBA IP-20)

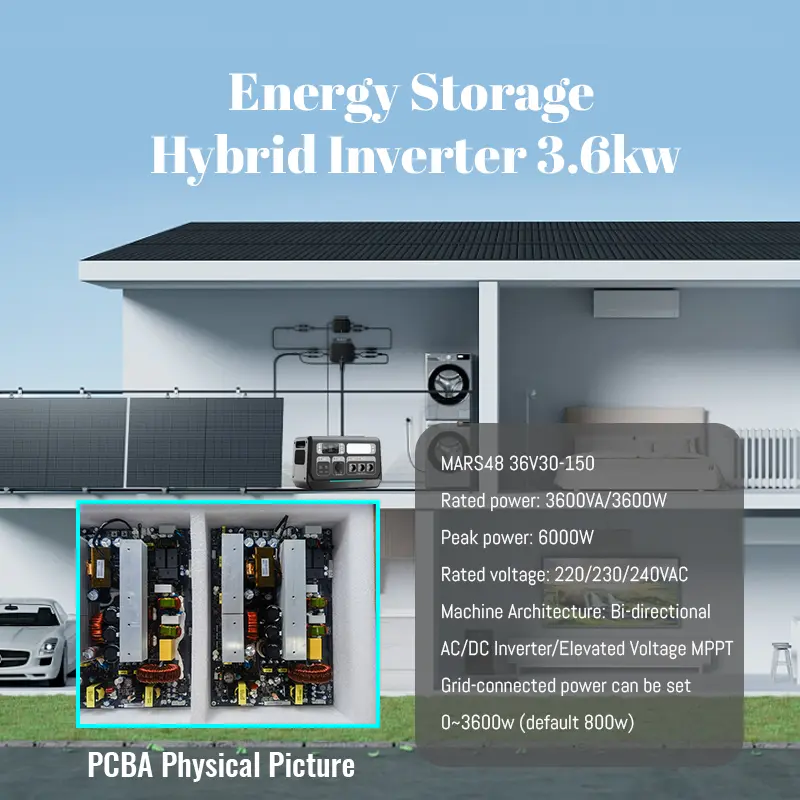

Energy storage inverter product features



1. The product is based on the home storage off-grid hybrid inverter platform and has both AC coupling and DC coupling solutions.

2. Focus on DC coupling solutions and comply with the mainstream development trend of the industry;

3. Products cover full single-phase 2kW~10kW, split-phase/three-phase 5kw~15kW;

4. Equipped with UPS function (power outage time is less than 10ms);

5. The intelligent control MPPT system has lower cost and higher conversion efficiency;

6. The product design fully considers the ease of expansion and adaptability to multiple BMS systems and is universal;

7. According to different market demands, products are divided into high, medium and low grades;

8. Integrated intelligent EMS management system;

9. Comply with different standard certification requirements in overseas markets;

10. The product can be paralleled, on-grid, off-grid, and phase-separated;

11. Supports DC arc protection, and the standard DC side surge secondary protection continues to provide safer power for families;

12. Intelligent monitoring and operation and maintenance, flexible system configuration;

13. Meet different application scenarios and meet more needs of users

14. Mature platform conversion has been fully verified to ensure high reliability of the product;

Flexible and diverse cooperation methods

 Specific cooperation methods:


1. The whole machine can be OEM and get supplementary certification.

2. The monitoring page and APP can be customized according to customer needs (mobile phone/computer).

3. Provide the movement (inverter and radiator integrated), and cooperate to complete the relevant certification of the whole machine.

4. Support ODM customized development (modification of size and layout), and cooperate to complete the relevant certification of the whole machine.

5. The purchase quantity and order quantity need to be guaranteed.
