1.6KW-3.6KW Microgrid Bidirectional Inverter

https://www.xiaopartner.com/web/image/product.template/17/image_1920?unique=90c2690
1.6KW-3.6KW Microgrid Bidirectional Inverter
Model：MARS48 16V16-100
1.6KW-3.6KW Microgrid Bidirectional Inverter Model：MARS48 16V16-100 The Inverter, hybrid inverter, with bidirectional inverter, utility charging, solar charging, UPS, grid-connection, parallel, etc., the product program derived from the home energy storage inverter comprehensive functions, compatible with the house and balcony energy storage functions, while having easy installation and commissioning, simple operation and maintenance, etc., stable performance and practicality. The balcony energy storage system, including micro hybrid inverter products and batteries, is designed for common balcony application scenarios. With this system, it enables energy conversion to power household loads while storing excess energy in small houses such as apartments. Thanks to its plug-and-play design, the system can be easily installed and assembled through DIY, which greatly saves installation and O&M costs. In addition, users can manage and control their energy production through a mobile app based on their actual power needs.

$ 0.00 0.0 USD $ 0.00 Tax Excluded

$ 0.00 Tax Excluded

Inquiry right now.

    This combination does not exist.

    Request a Quote

    Pre-sale Tips
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Share

    1.6KW-3.6KW Microgrid Bidirectional Inverter


    Energy storage during the day and power supply at night.

    Energy efficient grid-connected power generation.

    Plug and play without installation.

    Grid-connected power APP adjustment.

    Product Features

    Super fast charging

    Charge/reverse bi-directional conversion, charge/reverse equal power, charging power can be set.


    Ultra-wide input voltage and frequency range

    Extremely wide input voltage range of 90-280Vac (for 220V system) &90-140Vac (for 110V system) and frequency range of 40-70Hz, no fear of harsh power environment (voltage and frequency are within the specific range for grid-connected use.

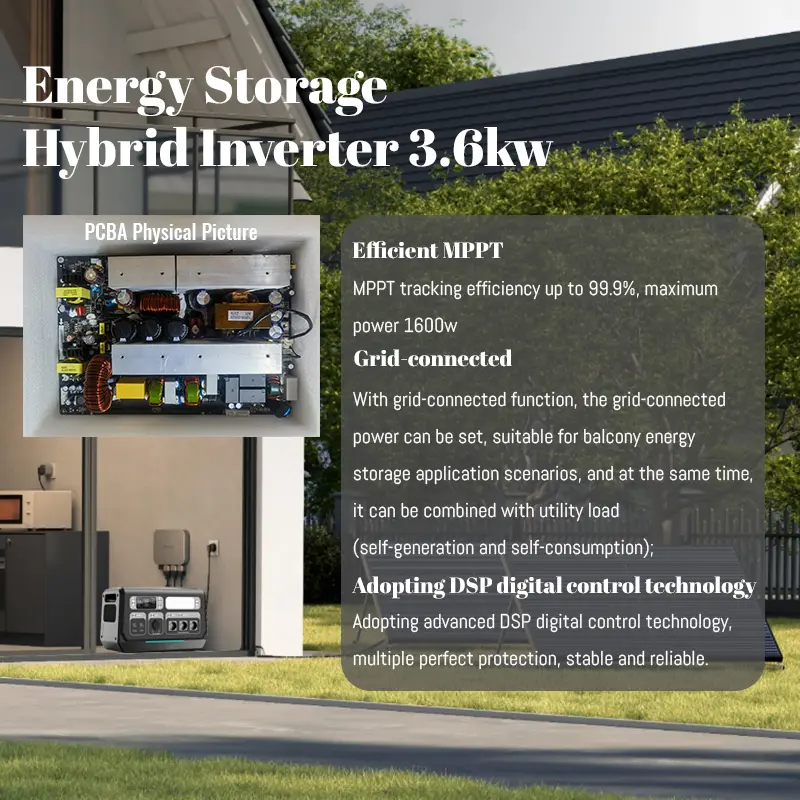

    High efficiency MPPT

    MPPT tracking efficiency up to 99.9%, maximum power of 1600w.


    Battery under-voltage wake-up (mains wake-up and MPPT wake-up)

    Battery under-voltage wake-up (utility wake-up and MPPT wake-up) þ Battery under-voltage protection when the battery is not charged in time after outdoor power use and left for a long time resulting in a serious battery deficit

    Grid-connected

    Grid-connected function, grid-connected power can be set, suitable for balcony energy storage application scenarios, and at the same time can be combined with the utility load (self-generation and self-consumption)

    Charging mode output protection

    Output can be controlled and no output at all during mains charging mode.


    Excellent load adaptability

    Output 100/110/120V & 220/230/240V, 50/60Hz sine wave, strong overload capability, suitable for all kinds of IT equipments, power tools, household appliances, not picking loads.


    DSP digital control technology

    Adopting advanced DSP digital control technology, multiple perfect protection, stable and reliable.

    Split-phase

    3 inverters can form a 3-phase system, and more than 3 inverters can be configured with different phase capacities according to the usag requirements.


    High charging and discharging efficiency

    Adopting advanced technology design, low loss, low heat generation, saving battery power and prolonging discharge time.

    Cell phone APP to set the working mode, grid-connected time and power

    With Wifi/Bluetooth to connect to cloud platform remotely.

    Paralleling

    Up to 6 units can be connected to the grid High power density, small footprint, light weight, strong structure, small footprint and suitable for portable and mobile applications.

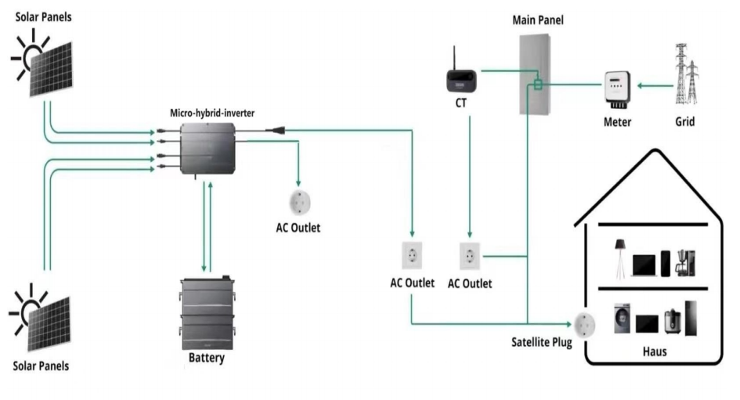

    Working Principle Diagram



    1.6KW-3.6KW Microgrid Bidirectional Inverter Specification


    PDF Download（Click to download）


    You can choose a higher level of cooperation:

    1. The whole machine can be OEM and get supplementary certification.

    2. The monitoring page and APP can be customized according to customer needs (mobile phone/computer).

    3. Provide the movement (inverter and radiator integrated), and cooperate to complete the relevant certification of the whole machine.

    4. Support ODM customized development (modification of size and layout), and cooperate to complete the relevant certification of the whole machine
