All-In-One Energy Storage Solar Charging System
• Overview

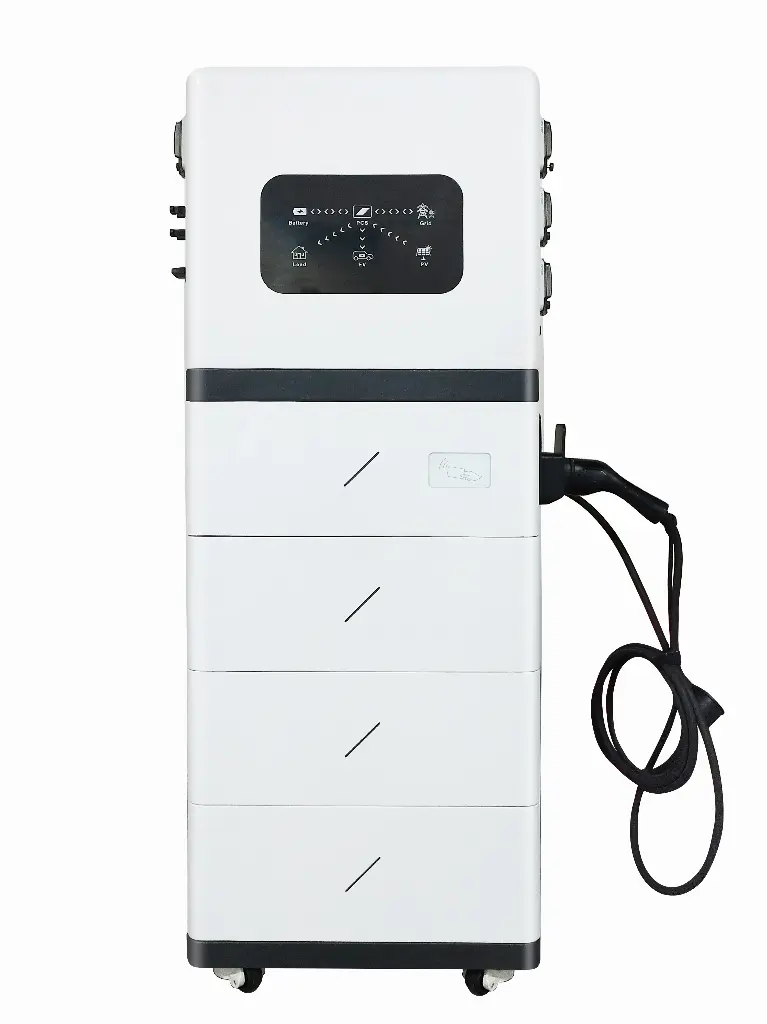

All-In-One Energy Storage Solar Charging System
Integrated design with first-class battery solution to provide energy security for your home
Wheeled design, single-handling, 10-minute quick installation.
Conveniently replaceable and washable dustproof grid for easy replacement of the fan structure.

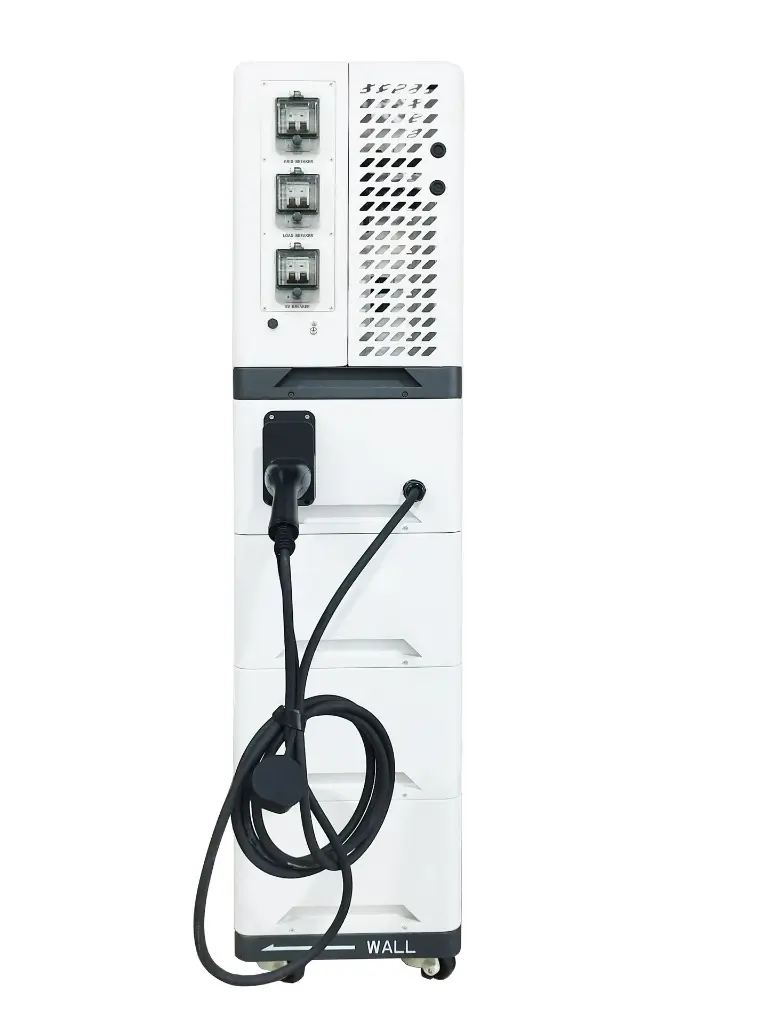

Concealed junction box, safe and reliable, intelligent heat dissipation, low noise, low power consumption, and long life span.
Features
•Integration of PV inverter, energy storage, charging and power distribution.
•Built-in DSP control with SPWM modulation technology.
•Modular design, up to 6 battery modules can be connected in parallel.
•Easy to install, can be assembled in less than 20 minutes.
•24-hour real-time network monitoring.
Big LCD display
Power export limit
Wifi/GPRS/Lan communication optional
Compact and easy to install
Learn moreHIGHLIGHT
Grid Connection
Support seamless switching between parallel and off-network, switching time ≤ 8ms
Supports Multiple Types of Battery Packs
DC bus side wide range design, support multiple types of battery packs
No External Isolation Transformer Required
No external isolation transformer required
Supports Remote Access
Intelligent management and control strategy, support local or remote access
Supports Pure off-Grid Operation
Support pure off-grid operation, access to different loads
MPPT
Support PV multi-way MPPT access, improve power generation efficiency
Modular Built-in High-Frequency Isolation Architecture
The system adopts modularized built-in high-frequency isolation architecture to ensure the ultimate safety of the battery.
Supports Photovoltaic
The system supports PV and power flexible selection
Supports Utility or Diesel Power
Grid-side support for utility or diesel-fired power supply.
Load Power Supply
Supports PV, battery and grid to supply power to loads at the same time.
Turnkey Project
Turnkey project, saving time for on-site installation and commissioning.
IP54
IP54 protection level
Specification

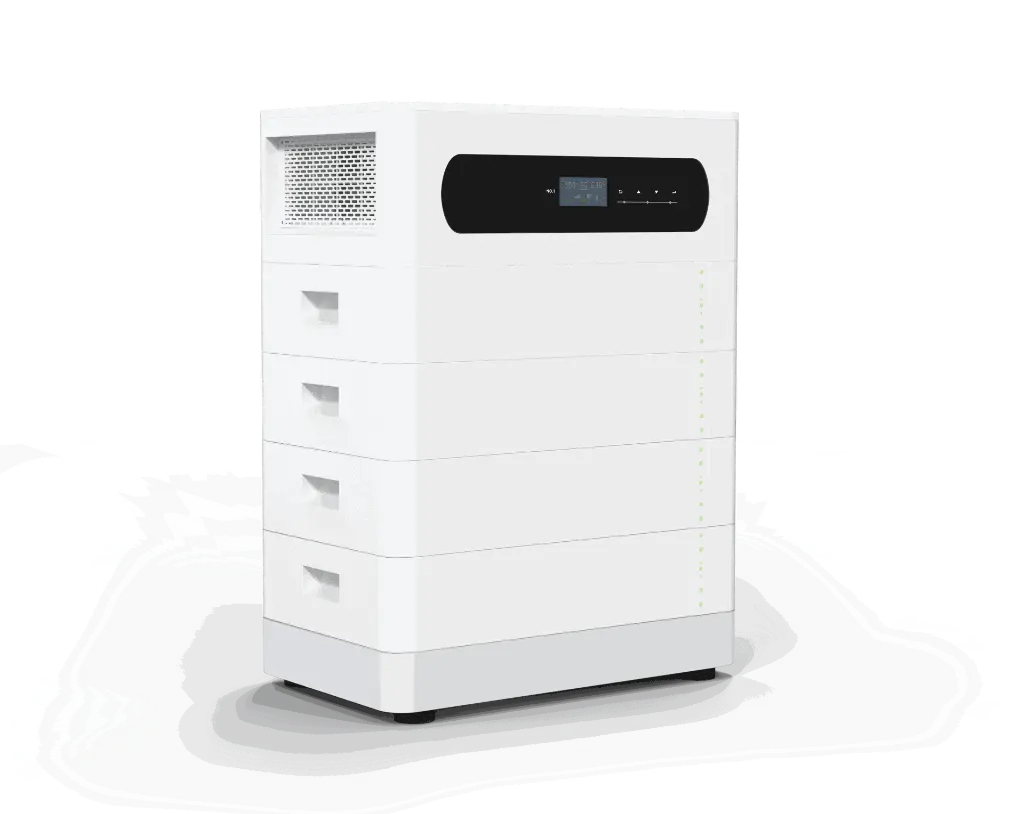

Category | SP5600-A30B | SP11200-A30B | ESSC-HY5-EV7-BAT5 |
Product Name | Stacked Battery Systems | Stacked Battery Systems | Solar Charging System |
Battery Type | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) |
Nominal Battery Voltage (Vdc) | 51.2 | 41.6 - 58.5 | / |
Battery Capacity (KWH) | 5 - 20 | 5.12 - 30.72 | / |
Charging Temperature (°C) | 0 - 55 | 0 - 55 | / |
Discharge Temperature (°C) | -20 - 55 | -20 - 55 | / |
PV Input | |||
Maximum Input Power (W) | 6000 | 6000*2 | 5500 |
Maximum DC Charge (W) | 5600 | 5600*2 | 5600 |
MPPT Operating Voltage Range (Vdc) | 120 - 450 | 120 - 450 | / |
Start-up Voltage (Vdc) | 120 | 120 | / |
Single MPPT Input Current (A) | 22 | 22*2 | 20 |
Single MPPT Maximum Input Current (A) | 13 | 13 | 15/15 |
Number of MPPT Input Channels | 1 | 1 | / |
Number of MPPT strings per channel | 2 | 2 | / |
AC Output (Grid/Off Grid) | |||
Grid Output/Input Maximum Power (VA) | 5600 | 5600*2 | 7000W |
Nominal Output Voltage (Vac) | 220/230 | 220/230/240 | / |
Output Voltage Range (Vac) | 170 - 280 | 170 - 280 | / |
Rated Operating Frequency (Hz) | 50/60(±2%) | 50/60(±2%) | 50/60(±2%) |
Conversion Time (ms) | 10 | 10 | 10 |
Total Harmonics | <3% | / | / |
Grid Output/Input Maximum Current (A) | 17 | 17 | / |
Operation | Card/APP/Plug-in self-start/Timed charging reservation/5m charging cable | Card/APP/Plug-in self-start/Timed charging reservation/5m charging cable | / |
Efficiency | |||
Maximum Efficiency | >95% | >95% | / |
Maximum DC-AC Conversion Efficiency | >92% | >92% | / |
MPPT Efficiency | 99% | 99% | / |
General Data | |||
Inverter Controller Weight(KG) | 22 | 30 | 72 |
Weight of Single Battery Pack(KG) | 53 | 53 | 53 |
Inverter Controller Package Size (WxHxD)(MM) | 760x496x322 | 760x496x322 | 645 x 557 x 370 |
Battery Pack Dimension (WxHxD)(MM) | 760x496x238 | 760x496x238 | 585 x 270 x 370 |
Chassis Package Dimensions (WxHxD)(MM) | 760x496x190 | 760x496x190 | 680 x 110 x 378 |
Charging Pile Size (L X H X W mm) | / | / | 650 x 270 x 370 |
Operating Temperature Range(°C) | -15 - 55 | -5 - 55 | -25 - 55 |
Heat Dissipation | Fan cooling | Fan Cooling | Autocooling |
Waterproof | IP20 | IP20 | IP65 |
Communication | USB/RS485/Thousand node control | USB/RS485/Thousand node control | RS485/CAN/WiFi |
Certificates | CE(IEC62109-1)EN61000 C2 | CE(IEC62109-1)EN61000 C2 | / |
